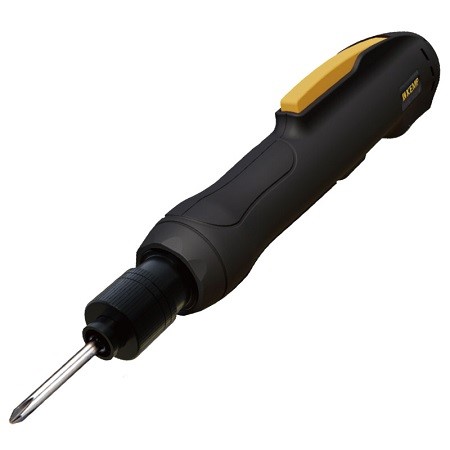

ETS Series – Torque Monitoring Electric Screwdriver

• Hall Effect Switch Non-contact type switch that reduces the effects of wear and tear, which greatly  enhances the durability and reliability.

• Coreless Brushless Motor with low inertia characteristic, the motor performs with  stability and precision at both high and low speed range.

• Patented Transducer Technology High precision torque sensing mechanism with high sensitivity and durability.

• High Strength Clutch Mechanism A proven design tested over 2 million fastening cycles at maximum torque.

• High Strength Spring kti 3i intelligence tools ser. Dimensions Unit: mm 241 Tested over 1 million fastening cycle to ensure the spring tension is retained to reach the maximum torque

• LED Lights & Buzzer Built-in signal lights with three colors to inform the user about the status of  each fastening cycle.

ETS Series – Torque Monitoring Electric Screwdriver

ETS Controllers unit

Function:

• Real-time monitoring Displaying real-time status: OK, AII OK, NOK, unfinished rundown, cross threading, omission, incomplete cycle, torque curve, time and number of turns.

• Parameter Setting Fastening setting includes target torque, fastening duration(time), number of turns, speed(RPM), screw count and system lock.

• Flexibility in Connection Can be connected with mobile devices, laptop, PC or other system for controls

• Data Storage Built-in 16G memory capable of storing over 1 million set of fastening data, or data can be transferred to external device for storage through WIFI or Modbus

• Access Authorization Three levels of authorization for the most secure management on the assembly line.

• Scan management The USB port can be connected to a wired or wireless barcode machine. Execute work order scanning code record and technical function scanning code unlocking.

• Smart Monitoring Intuitive Control Interface ETS-LC1A Controller can be programmed with the 5″ touch screen, mobile device, PC and laptop through WIFI connection.

• Controller with 5″ Touch Screen ETS-LC1A Controller is equipped with 5″ touch screen for easy access to the control and settings. The controller is conveniently-sized for easy placement on the assembly line.
