EPT Series - Precision Torque Transducer Fastening Tools
EPT Precision Torque Transducer Fastening Tools
Features & benefits:
- EPT Series is the new A-class intelligent transducerized assembly system from KEMP.The system consists of an advanced state-of-the-art controller and a range of handheld and fixtured electric screwdrivers with torque up to 70 Nm.
- EPT Series transducerized electric tools cover all assembly line requirements for an accurate, high-quality torque and angle-controlled tightening experience.
- EPT Series built-in compact transducer provides torque control with excellent repeatability.
- EPT screwdrivers feature unsurpassed ergonomics, soft touch design, status LED, temperature protection combined with full traceability and error-proofing capabilities.
- Available in straight, pistol and angle configuration.

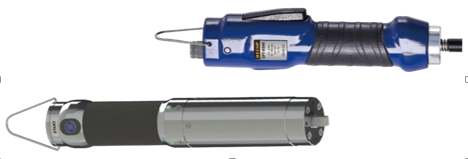

- EPT Transducer Screwdriver, Inline Type
| Model | Drive Size (Hex./Sq) | Torque Range | Free Speed | Length | Diameter | Weight | Item No. | |
|---|---|---|---|---|---|---|---|---|
| Kgf.cm | Nm | rpm | Mm | Mm | kg | |||
| EPT-KS15 | 1/4 | 1-15 | 0.1- 1.5 | 50 - 850 | 254 | 40 | 0.7 | 330 90 111 |
| EPT-KS60 | 1/4 | 5-60 | 0.5-6.0 | 50-850 | 251 | 40 | 0.7 | 330 90 211 |
| EPT-KS100 | 1/4 | 8-100 | 0.8 - 10.0 | 50- 600 | 251 | 40 | 0.7 | 330 90 311 |
| EPT-KS150 | 1/4 | 5-150 | 0.5 - 15.0 | 50 -320 | 251 | 40 | 0.7 | 330 90 411 |
| EPT-KS200 | 3/8 | 20- 200 | 2.0 - 20.0 | 20 - 210 | 297 | 43 | 1.3 | 330 90 511 |
| EPT-KS350 | 3/8 | 30- 350 | 3.0 - 35.0 | 20-140 | 318 | 43 | 1.8 | 330 90 611 |
| EPT-KS500 | 1/2 | 50-500 | 3.0 - 35.0 | 20-90 | 322 | 43 | 1.8 | 330 90 711 |

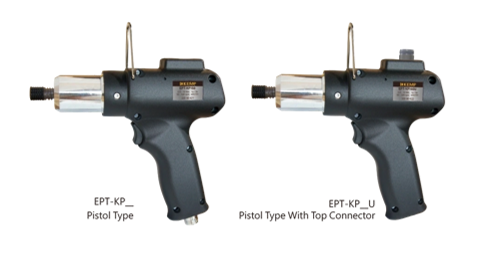

EPT Transducer Screwdriver, Pistol Type
EPT Transducer Screwdriver, Pistol Type With Top Connector
| Model | Drive Size (Hex.) | Torque Range | Free Speed | LengthxHeight | Diameter | Weight | Weight | |
|---|---|---|---|---|---|---|---|---|
| Kgf.cm | Nm | rpm | Mm | Mm | kg | |||
| EPT-KP15 | 1/4 | 1-15 | 0.1-1.5 | 50-850 | 186x172 | 50 | 0.7 | 330 90 121 |
| EPT-KP60 | 1/4 | 5-60 | 0.8 - 10.0 | 50-850 | 186x170 | 50 | 0.7 | 330 90 221 |
| EPT-KP100 | 1/4 | 8 - 100 | 0.8 - 10.0 | 50-600 | 186x170 | 50 | 0.7 | 330 90 321 |
| EPT-KP150 | 1/4 | 5-150 | 0.5 - 15.0 | 50 - 320 | 186x170 | 50 | 0.7 | 330 90 421 |
| EPT-KP15U | 1/4 | 1-15 | 0.1-1.5 | 50- 850 | 186x172 | 50 | 0.7 | 330 90 122 |
| EPT-KP60U | 1/4 | 5-60 | 0.5- 6.0 | 50 - 850 | 186x170 | 50 | 0.7 | 330 90 222 |
| EPT-KP100U | 1/4 | 8 - 100 | 0.8 - 10.0 | 50 - 600 | 186x170 | 50 | 0.7 | 330 90 322 |
| EPT-KP150U | 1/4 | 5-150 | 0.5- 15.0 | 50-320 | 186x170 | 50 | 0.7 | 330 90 422 |

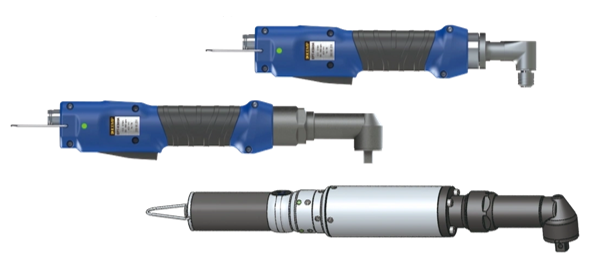

EPT Transducer Screwdriver, Angle Head Type
| Model | Drive Size | Torque Range | Free Speed | Length | Diameter | Weight | Item No. | |
|---|---|---|---|---|---|---|---|---|
| Kgf.cm | Nm | rpm | Mm | Mm | kg | |||
| EPT-KS15A | 1/4(Hex.) | 1-15 | 0.1-1.5 | 50-850 | 288 | 40 | 0.7 | 330 90 151 |
| EPT-KS60A | 1/4(Hex.) | 5-55 | 0.5-5.5 | 50 - 850 | 288 | 40 | 0.7 | 330 90 251 |
| EPT-KS100A | 1/4(Hex.) | 8-90 | 0.8-9.0 | 50-600 | 288 | 40 | 0.7 | 330 90 351 |
| EPT-KS150A | 1/4(Hex.) | 5-120 | 0.5-12 | 50 - 320 | 326 | 40 | 0.9 | 330 90 451 |
| EPT-KS300A | 3/8(Sq.) | 30-300 | 3.0-30.0 | 20 - 140 | 429 | 43 | 2.1 | 330 90 551 |
| EPT-KS450A | 1/2(Sq.) | 40-450 | 40-45.0 | 20-90 | 450 | 43 | 2.8 | 330 90 651 |
| EPT-KS700A | 1/2(Sq.) | 70-700 | 7.0-70.0 | 20-50 | 453 | 43 | 2.8 | 330 90 751 |
EPT Series – Precision Torque Transducer Fastening Tools
Features & benefits:
- EPT Series is the new A-class intelligent transducerized assembly system from KEMP. The system consists of an advanced state-of-the-art controller and a range of handheld and fixtured electric screwdrivers with torque up to 70 Nm.
- EPT Series transducerized electric tools cover all assembly line requirements for an accurate, high-quality torque and angle-controlled tightening experience.
- EPT Series built-in compact transducer provides torque control with excellent repeatability.
- EPT screwdrivers feature unsurpassed ergonomics, soft touch design, status LED, temperature protection combined with full traceability and error-proofing capabilities.
Available in straight, pistol and fixture Mount configuration.

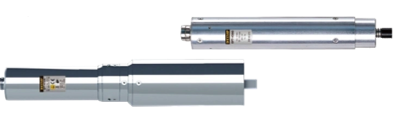

EPT Transducer Screwdriver, Fixture Mount
| Model | Drive Size | Torque Range | Free Speed | Length | Diameter | Weight | Item No. | |
|---|---|---|---|---|---|---|---|---|
| Kgf.cm | Nm | rpm | Mm | Mm | kg | |||
| EPT-KF15 | 1/4(Hex.) | 1-15 | 0.1-1.5 | 50-850 | 237 | 40 | 0.9 | 330 90 131 |
| EPT-KF60 | 1/4(Hex.) | 5-60 | 0.5-6.0 | 50-850 | 248 | 40 | 0.9 | 330 90 231 |
| EPT-KF100 | 1/4(Hex.) | 8- 100 | 0.8 - 10.0 | 50 - 600 | 248 | 40 | 0.9 | 330 90 331 |
| EPT-KF150 | 1/4(Hex.) | 5-150 | 0.5 - 15.0 | 50-320 | 248 | 40 | 0.9 | 330 90 431 |
| EPT-KF200 | 3/8(Sq.) | 20 - 200 | 2.0 - 20.0 | 20 - 210 | 297 | 48 | 1.3 | 330 90 531 |
| EPT-KF350 | 3/8(Sq.) | 30-350 | 3.0- 35.0 | 20 - 140 | 318 | 57 | 1.8 | 330 90 631 |
| EPT-KF500 | 1/2(Sq.) | 50 - 500 | 5.0 - 50.0 | 20-90 | 322 | 57 | 1.8 | 330 90 731 |

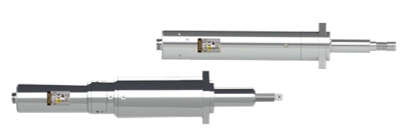

EPT Transducer Screwdriver, Fixtured with Flange Mount
| Model | Drive Size | Torque Range | Free Speed | Length | Diameter | Weight | Item No. | |
|---|---|---|---|---|---|---|---|---|
| Kgf.cm | Nm | rpm | Mm | Mm | kg | |||
| EPT-KF15N | 1/4(Hex.) | 1-15 | 0.1- 1.5 | 50-850 | 316 | 40 | 1.1 | 330 90 141 |
| EPT-KF60N | 3/8(Sq.) | 5-60 | 0.5-6.0 | 50-850 | 350 | 40 | 1.1 | 330 90 241 |
| EPT-KF100N | 3/8(Sq.) | 8-100 | 0.8 - 10.0 | 50- 600 | 350 | 40 | 1.1 | 330 90 341 |
| EPT-KF150N | 3/8(Sq.) | 5-150 | 0.5- 15.0 | 50-320 | 350 | 40 | 1.1 | 330 90 441 |
| EPT-KF200N | 3/8(Sq.) | 20-200 | 2.0 - 20.0 | 20- 210 | 383 | 48 | 1.6 | 330 90 541 |
| EPT-KF350N | 3/8(Sq.) | 30- 350 | 3.0 - 35.0 | 20 - 140 | 409 | 57 | 2.1 | 330 90 641 |
| EPT-KF500N | 1/2(Sq.) | 50 - 500 | 5.0 - 50.0 | 20-90 | 420 | 57 | 2.3 | 330 90 741 |
EPT Transducer Screwdriver, Fixtured With Angle Head
| Model | Drive Size(Hex.) | Torque Range | Free Speed | Length | Diameter | Weight | Item No. | |
|---|---|---|---|---|---|---|---|---|
| Kgf.cm | Nm | rpm | mm | mm | kg | |||
| EPT-KF60A | 1/4 | 5 – 55 | 0.5 – 5.5 | 50 – 850 | 280 | 40 | 0.7 | 330 90 261 |
| EPT-K100A | 1/4 | 8 – 90 | 0.8 – 9.0 | 50 – 600 | 280 | 40 | 0.7 | 330 90 361 |
| EPT-K150A | 1/4 | 5 - 120 | 0.5 - 320 | 50 - 320 | 280 | 40 | 0.9 | 330 90 461 |
EPT Series – Precision Torque Transducer Fastening Tools

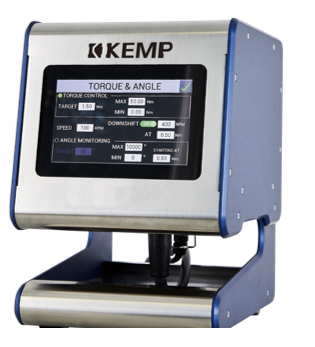

EPT-KC Controllers unit
EPT-KC Series of controllers give you full control of your fastening operation in an industry leading compact size. With features like touch screen color display, 16 programs and 64 sequences, intuitive programming interface, torque and angle control and graphs output, the EPT-KC units provide unmatched performance and value. The Controllers unit comes in two versions depending on the functionality level required. The KC1 basic unit includes serial and USB ports. In addition to that, KC1A advanced controllers feature a Modbus TCP communication port. Most communication protocols are available with the support of external modules. EPT-KC controllers will operate all EPT series of tools.
| Model | Item No. | |||||
|---|---|---|---|---|---|---|
| EPT-KC1 | 335 90 101 | |||||
| EPT-KC1A | 335 90 102 | |||||
| Features | Basic EPT-KC1 | Advanced EPT-KC1A | Features | Basic EPT-KC1 | Advanced EPT-KC1A | |
| 5" Touch Screen | Ο | Ο | USB | Ο | Ο | |
| Number of programs | 64 | 64 | Modbus TCP | Ο | ||
| Sequences | 8 | 8 | Device net | + | ||
| 20 Input | Ο | Ο | CC-Link | + | ||
| 21 Outputs | Ο | Ο | Profibus | + | ||
| Torque graph | Ο | Ο | Ethernet/IP | + | ||
| Bar code reading | Ο | Ο | Profinet | + | ||
| Torque & angle control | Ο | Ο | Profinet FO | + | ||
| Multiple parameters | Ο | Ο | Ethercat | + | ||
| RS232 (2) | Ο | Ο | CC-Link IE Field | + | ||
| MINI USB | Ο | Ο | Power link | + |
