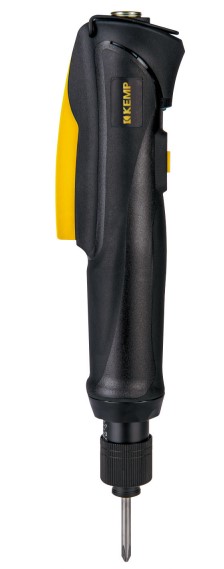

EBS DC Brushless Shut-off Electric Screwdriver
Kti EBS Series
- Built-in Type Torque Indication Lamp The torque indication lamp is of an intuitive design. When the tightening torque is reached, this indication lamp will notify the user. It can avoid thread slipping and incomplete tightening and is more user-friendly in use.
- High performance coreless brushless motor Low inertia, Low thermal growth. No need to replace carbon brush for saving cost.
- Hall Effect Switch Non-contact type switch that reduces the effects of wear and tear, which greatly enhances the durability and reliability.
- Extra wear-resistant clutch The screwdriver is equipped with an extra wear-resistant clutch, with low torque decay and stable torque output. The unit is suitable for high-tech precision parts.
- Streamlined Shape and Excellent Holding Feeling The design of the grip is ergonomic. It not only prevents hand soreness, but also reduces fatigue during use. Comfort even over long-term use can be assured.
- Excellent Clockwise/Counter-clockwise Rotation Change Switch The clear, simple and large icon displays the directional rotation status.
| Model | Drive Size | Torque Range | Free Speed | Applicable Screw Mech. Thread Dia./ Self-apping Thread Dia. | Item No. | |
|---|---|---|---|---|---|---|
| Kgf.cm | Nm | rpm | mm | |||
| EBS-HX401-K | Θ4 | 0.15~1 | 0.0147~0.098 | 700 | 0.7~1.8/0.6~1.4 | 304 17 931 |
| EBS-HX406-K | Θ4 | 0.5~6 | 0.049~0.588 | 700/1000 | 1.0~2.6/1.0~2.3 | 304 17 933 |
| EBS-HX410-K | Θ4 | 0.5~6 | 0.196~0.98 | 700/1000 | 2.2~3.0/2.0~2.6 | 304 17 934 |
| EBS-HS606-K | 1/4" | 0.5~6 | 0.049~0.588 | 700/1000 | 1.0~2.6/1.0~2.3 | 304 17 901 |
| EBS-HS706H-K | 1/4" | 0.5~6 | 0.049~0.588 | 1300/2000 | 1.0~2.6/1.0~2.3 | 304 17 941 |
| EBS-HS616-K | 1/4" | 1~16 | 0.098~1.56 | 700/1000 | 2.2~4.0/2.0~3.2 | 304 17 902 |
| EBS-HS716H-K | 1/4" | 1~16 | 0.098~1.56 | 1300/2000 | 2.2~4.0/2.0~3.2 | 304 17 946 |
| EBS-HS620-K | 1/4" | 2~20 | 0.196~1.96 | 700/1000 | 2.6~4.2/2.3~3.5 | 304 17 903 |
| EBS-HS720H-K | 1/4" | 2~20 | 0.196~1.96 | 1300/2000 | 2.6~4.2/2.3~3.5 | 304 17 943 |
| EBS-HS624-K | 1/4" | 4~24 | 0.39~2.35 | 700/1000 | 3.0~5.0/2.6~4.0 | 304 17 904 |
| EBS-HS724H-K | 1/4" | 4~24 | 0.39~2.35 | 1300/2000 | 3.0~5.0/2.6~4.0 | 304 17 944 |
| EBS-HS630-K | 1/4" | 6~30 | 0.588~2.94 | 700/1000 | 3.0~5.0/2.6~4.0 | 304 17 905 |
| EBS-HS730-K | 1/4" | 6~30 | 0.588~2.94 | 900/1300 | 3.0~5.0/2.6~4.0 | 304 17 925 |
