Air Rivet Hammer / Air Rivet Shaver
Air Rivet Hammer
Features & benefits:
- User-friendly, lightweight aluminum body
- Different sizes for choice according to impact and working space.
- Progressive lever for flexible control of rivet force
- Rubber grip cover for comfortable and stable grip and reduce vibration
| Model | Chisel Shank Size | Setting Capacity (Alum.) | Piston Diameter | Piston Stroke | Length | Weight | Item No. | |
|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | Mm | mm | kg | ||

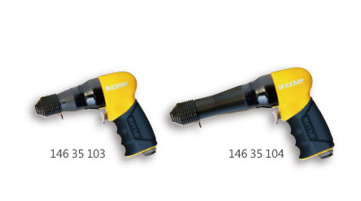

| AEH-RPНЗ | 10 | 3/32-5/32 | 2-4 | 14 | 58 | 135 | 0.91 | 146 35 103 |
| AEH-RPH4 | 10 | 5/32-3/16 | 4-5 | 14 | 93 | 175 | 1.07 | 146 35 104 |
Air Pressure: Air Inlet Size 1/4 inch Min. Air Hose ID 3/8 inch. Recommend Air Pressure 90 psi
Included accessories: 1x 1/4″Coupler 1x Chisel 1x Beehive Retainer spring
Air Rivet Hammer
Features & benefits:
- Available for aluminum Rivet 2-3mm.
- User-friendly, lightweight aluminum body
- Different sizes for choice according to impact and working space.
| Model | Chisel Shank Size | Setting Capacity (Alum.) | Piston Diameter | Piston Stroke | Length | Weight | Item No. | ||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | mm | Mm | mm | kg | ||
| A-EHP-PN2-S61B28 | 0.401 | 10.19 | 3/32-1/8 | 2-3 | 14.3 | 61 | 110 | 0.95 | 146 35 202 |
Air Pressure: Air Inlet Size 1/4 inch Min. Air Hose ID 3/8 inch . Recommend Air Pressure 90 psi
Included accessories: 1x 1/4″Coupler 1x Quick Change Retainer spring
Air Rivet Hammer
Features & benefits:
- User-friendly, lightweight aluminum body
- Different sizes for choice according to impact and working space.
| Model | Setting Capacity | Chisel Shank Size | Piston Stroke | Blow per minute | Length | Item No. | |
|---|---|---|---|---|---|---|---|
| inch | mm | mm | mm | Bpm | mm | ||

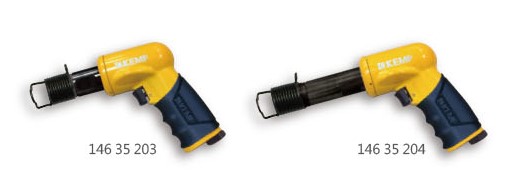

| A-EHP-PN2-S68B25 | 3/32 – 5/32 | 2 - 4 | 0.401 | 68 | 2580 | 140 | 146 35 203 |
| A-EHP-PN2-S101B17 | 5/32 – 3/16 | 4 – 5 | 10.19 | 101 | 1740 | 180 | 146 35 204 |
Air Pressure: Air Inlet Size 1/4-inch Min. Air Hose ID 3/8 inch. Recommend Air Pressure 90 psi
Included accessories: 1x 1/4″Coupler 1x Quick Change Retainer spring
Air Rivet Hammer
Features & benefits:
- User-friendly, lightweight aluminum body
- Different sizes for choice according to impact and working space.
| Model | Chisel Shank Size | Setting Capacity (Alum.) | Piston Stroke | Length | Weight | Item No. | ||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | mm | mm | kg | ||
| A-EHP-PN2-S68B25 | 0.498 | 12.65 | 3/16 – 1/4 | 5 -6 | 155 | 221 | 1.33 | 146 35 205 |
| A-EHP-PN2-S101B17 | 0.498 | 12.65 | 1/4 – 5/16 | 6 - 8 | 123 | 272 | 1.4 | 146 35 207 |
| A-EHP-PN2-S159B12 | 0.498 | 12.65 | 5/16 – 3/8 | 8 - 10 | 159 | 287 | 1.6 | 146 35 209 |
Air Pressure: Air Inlet Size 1/4 inch. Min. Air Hose ID 3/8 inch . Recommend Air Pressure 90 psi
Included accessories: 1x 1/4″Coupler 1x Quick Change Retainer spring
Air Rivet Shaver
Features & benefits:
- Take rivet off with this shaver.
- Shaving depth could adjust for precision results.
- Air valves can be started slowly during. High-speed operation, to protect work piece.
- Industrial motor with needle bearing. High strength fan blade extend service life.
- Rubber grip brings comfortable and reduce vibrations.
- 5mm adjustable shaving depth
| Model | Horse Power | Free Speed | Length | Weight | Item No. |
|---|---|---|---|---|---|
| hp | rpm | mm | kg | ||
| A-ESP-G41-P09R210 | 0.9 | 21000 | 260 | 1.2 | 148 04 140 |
Air Pressure: Air Inlet Size 1/4 inch . Min. Air Hose ID 3/8 inch. Recommend Air Pressure 90 psi
Included accessories: 1x 1/4″Coupler 1x Adjust Key 1x Holder 1x 1/2″ Cutter. 1x 1/2″ Skirt
Option Cutter Diameter: Cutter : 5/16, 3/8, 7/16, 1/2, 9/16, 5/8 Skirt: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8
