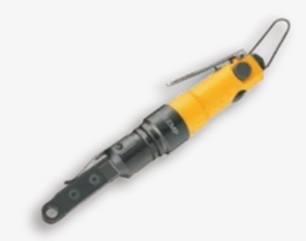

Thinner Head Air Ratchet Wrench
Features & benefits
- Bolt tightening for narrow and distinct spaces.
- For pre-tightening. Strong impulse when torque value reached.
- Than tightening with manual torque tools
| Model no | SOCKET SIZE | TORQUE RANGE | FREE SPEED | LENGTH | WEIGHT | ITEM NO. | |
| MM | INCH | Nm | Rpm | Mm | Kg | ||
| A-BCS-A00-R18T10 | 6, 7, 8, 10, 11, 12 | 1/4, 3/8 | 10 | 180 | 300 | 1.3 | 105 32 300 |
| A-BCS-A01-R19T25 | 10, 11, 12, 13, 14 | 1/2, 9/16 | 25 | 220 | 332 | 1.92 | 105 32 301 |
| A-BCS-A01-R15T90 | 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 | – | 90 | 150 | 390 | 2.42 | 105 32 302 |
| A-BCS-A01-R13T90 | 21, 22, 23, 24, 26, 27 | – | 90 | 130 | 398 | 2.48 | 105 32 303 |
| A-BCS-A01-R11T90 | 29, 30, 32 | – | 90 | 110 | 405 | 2.5 | 105 32 304 |
A-BRA-P30-R55T54 3/8” Sq. Air Impact Ratchet Wrench
Features & benefits
• Bolt tightening for narrow and distinct spaces
• For pre-tightening. Strong impulse when torque value reached. Than tightening with manual torque tools
• Ergonomics grip bring the comfortable feeling for the operation.
• Built in impact structure. Prevent rachet reaction force.
• Pin Clutch
| Model No | Drive Size (Sq) | Max. torque | Free Speed | Length | Weight | Item no. |
| Inch | nm | rpm | mm | kg | ||
| A-BRA-P30-R55T54 | 3/8 | 54 | 550 | 160 | 0.63 | 105 35 102 |
| A-BRA-P30-R25T81 | 3/8 | 81 | 250 | 290 | 1.43 | 105 35 110 |
| A-BRA-A32-R27T27 | 3/8 | 27 | 270 | 188 | 0.54 | 105 35 104 |
| A-BRA-A41-R16T68 | 1/2 | 68 | 160 | 257 | 1.2 | 105 35 108 |
| A-BRA-P30-R55T54 | 3/8 | 54 | 270 | 217 | 0.68 | 105 35 106 |
| A-BRA-A43-R18T175 | 1/2 | 175 | 180 | 317 | 1.54 | 105 35 112 |

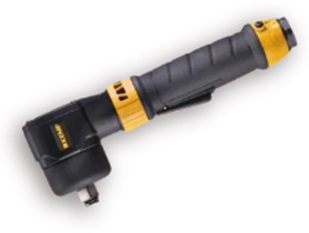

AIR IMPACT WRENCH
A-BIA-J46-R90T3 1/2″ Sq. AIR IMPACT WRENCH
Features & benefits
• IMPACT MECHANISM BRINGS HIGH SPEED AND TORQUE.
• FOR HIGH EFFICIENCY AND PRE-TIGHTENING ON THE WORK.
• THE KNOB-TYPE REVERABLE SWITCH BEHIND THE HANDLE GOOD FOR MOIVING IN
• A SMALL SPACE, AND IT IS CONVENIENT AND QUICK TO SWITCH.
• ERGONOMICS GRIP, BRING THE COMFORTABLE FEELING FOR THE OPERATOR
• JUMBO HAMMER
| Model no | Drive Size Sq. | Max. torque | Free Speed | Length | Weight | Item no. |
| inch | Nm | rpm | mm | kg | ||
| A-BIA-D31-R85T90 | 3/8 | 90 | 8500 | 265 | 1.58 | 103 32 311 |
| A-BIA-J46-R90T312 | 1/2 | 312 | 9000 | 247 | 1.5 | 103 12 300 |
| A-BIS-D31-R80T200 | 3/8 | 200 | 8000 | 225 | 1.07 | 103 32 301 |
| A-BIS-H31-R81T200 | 3/8 | 200 | 8100 | 220 | 1.32 | 103 32 302 |
| A-BIP-D31-R115T30 | 3/8 | 30 | 11500 | 155 | 0.9 | 103 32 303 |
| A-BIP-D31-R80T190 | 3/8 | 190 | 8000 | 160 | 1.2 | 103 32 305 |
| A-BIP-H31-R85T270 | 3/8 | 270 | 8500 | 155 | 1.32 | 103 32 306 |
| A-BIS-D35-R120T108 | 3/8 | 108 | 12000 | 139 | 0.53 | 103 33 304 |
| A-BIP-H46-R83T515 | 1/2 | 515 | 8300 | 149 | 1.3 | 103 12 301 |
| A-BIP-H46-R78T678 | 1/2 | 678 | 7800 | 116 | 1.16 | 103 12 303 |
| A-BIP-H46-R73T1085 | 1/2 | 1085 | 7300 | 174 | 2.0 | 103 12 304 |
| A-BIP-H65-R65T1085 | 3/4 | 1085 | 6500 | 236 | 4.55 | 103 33 307 |
| A-BIP-H66-R53T1900 | 3/4 | 1900 | 5300 | 201 | 3.3 | 103 12 305 |
| A-BIP-H86-R60T2034 | 1 | 2034 | 6000 | 228 | 5.7 | 103 12 307 |
| A-BIP-H87-R552700 | 1 | 2700 | 5500 | 256 | 5.7 | 103 38 301 |
| A-BID-H86-R55T2983 | 1 | 2983 | 5500 | 375 | 6.8 | 103 12 308 |
| A-BID-H86-R55T2983-6 | 1 | 2983 | 5500 | 527 | 7.7 | 103 12 309 |
| A-BID-L85-R40T2170-6 | 1 | 2170 | 4000 | 515 | 12.1 | 103 33 314 |
| A-BIP-L97-R40T4050 | 1-1/2 | 4050 | 4000 | 420 | 15.3 | 103 38 323 |
