Air Hydraulic Rivet Nuts Installation Tools
A-ENT-HM Air Hydraulic Rivet Nuts Installation Tools
Features & benefits:
- Rivet nuts made of aluminum, steel, and stainless steel can all be used.
- High strength alloy steel stud.
- Rotation direction while spinning in.
- Press lightly trigger for pulling and spinning out. Light weight composite boby and ergonomically designed, comfortable and reduce vibrations when operating. Rubber Boot: non-slip and protect in collision.
- Bi-directional 360 rotation air hose universal joint.
| Model | Setting Capacity | Stroke Length | Traction Power | Length | Height | Weight | Item No. |
|---|---|---|---|---|---|---|---|
| mm | mm | N | mm | mm | kg | ||
| A-ENT-HM2-S06T157 | M4-M10 | 6 | 15700 | 298 | 277 | 2.48 | 140 10 500 |
| A-ENT-HM2-S08T245 | M4-M12 | 8 | 24500 | 298 | 305 | 2.61 | 140 10 502 |
Air Pressure: Air Inlet Size 1/4 inch. Min. Air Hose ID 1/4 inch. Recommend Air Pressure 90-110 psi
Included accessories:
140 10 500 : 1x 1/4″Coupler 1x Universal joint 1x Oiler 1x Threaded mandrel M10 Install on tool 4x Threaded mandrel: M4.M5.M6.M8 1x 5mm Hex. key 1x 2mm Hex. key 1x Wrench (10, 11mm) 1x Wrench (27, 30mm)
140 10 502 : 1x 1/4″Coupler 1x Universal joint. 1x Oiler. 1x Threaded mandrel M12 Install on tool
5x Threaded mandrel : M4.M5.M6.M8.M10 1x 5mm Hex. key 1x 2mm Hex. key 1x Wrench (10, 11mm) 1x Wrench (27, 30mm)
Air Hydraulic Blind Rivets Installation Tools
A-EBT-HN Air Hydraulic Blind Rivets Installation Tools-Self Vacuum
Features & benefits:
- Rivet nuts made of aluminum, steel. and stainless steel can all be used.
- Claws made with high-tensile alloy steel.
- Botton switch: Easy to handle for Industrial long operation time.
- Cushion mandrel collector End of collector cushioned mandrel.
- Light weight composite boby and ergonomically designed, comfortable and reduce vibrations when operating.
- Rivet vacuum ON/OFF switch speediness.
- Rubber Boot: non-slip and protect in collision.
- Bi-directional 360 rotation air hose universal joint.
| Model | Setting Capacity | Stroke Length | Length | Height | Weight | Item No. | |
|---|---|---|---|---|---|---|---|
| inch | mm | mm | mm | mm | kg | ||

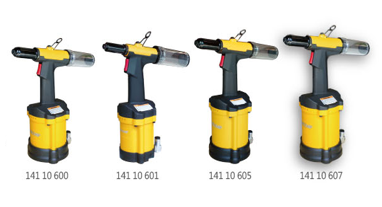

| A-EBT-HN2-S20T49 | 3/32, 1/8, 5/32 | 2.4, 3.2, 4.0 | 20 | 301 | 274 | 1.7 | 141 10 600 |
| A-EBT-HN2-S22T90-V | 5/32, 3/16 | 4.0, 4.8 | 22 | 298 | 305 | 1.9 | 141 10 601 |
| A-EBT-HN2-S25T166-V | 3/16, 1/4 | 4.8, 6.4 | 25 | 329 | 321 | 2.5 | 141 10 605 |
| A-EBT-HN2-S18T225-V | 5/16 | 7.8 | 18 | 329 | 321 | 2.5 | 141 10 607 |
Air Pressure: Air Inlet Size 1/4 inch. Min. Air Hose ID 1/4 inch . Recommend Air Pressure 90-110 psi
Included accessories:
141 10 600 : 1x 1/4″Coupler 1x Nose Piece 4.0mm on tool 2x Nose Piece (2.4, 3.2mm) 1x Deflector 1x Universal joint. 2x Multi-Wrench 1x Rubber Boot. 1x Mandrel Collector 1x 5mm Hex. key 1x Oiler 2x 17x19mm Double Open-end wrench
141 10 601 : 1x 1/4″Coupler 1x Nose Piece 4.8mm on tool. 2x Nose Piece (4.0, Monobolt 4.8mm) 1x Deflector 1x Universal joint. 2x Multi-Wrench 1x Rubber Boot 1x Mandrel Collector 1x 5mm Hex. key 1x Oiler 2x 17x19mm Double Open-end wrench
141 10 605 : 1x 1/4″Coupler. 1x Nose Piece 6.4mm on tool 3x Nose Piece (4.8, Monobolt 4.8, Monobolt 6.4mm) 1x Universal joint. 2x Multi-Wrench 1x Rubber Boot 1x Mandrel Collector 1x 5mm Hex. key 1x Oiler 2x 17x19mm Double Open-end wrench. 1x Deflector 1x 19x21mm Double Open-end wrench
141 10 607 : 1/4″Coupler 1x Nose Piece 7.8mm on tool 1x Universal joint 2x Multi-Wrench 1x Rubber Boot 1x Mandrel Collector 1x 5mm Hex. key. 1x Oiler. 2x 17x19mm Double Open-end wrench. 1x Deflector 1x 19x21mm Double Open-end wrench
